Spreaders and containers

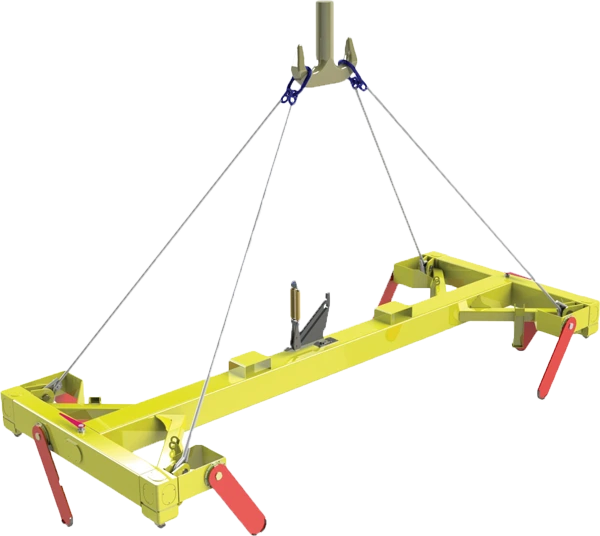

MECHANICAL-AUTOMATIC and ELECTRIC SPREADERS are manufactured in fixed and variable lengths to handle 10', 20', 30', 40' containers.

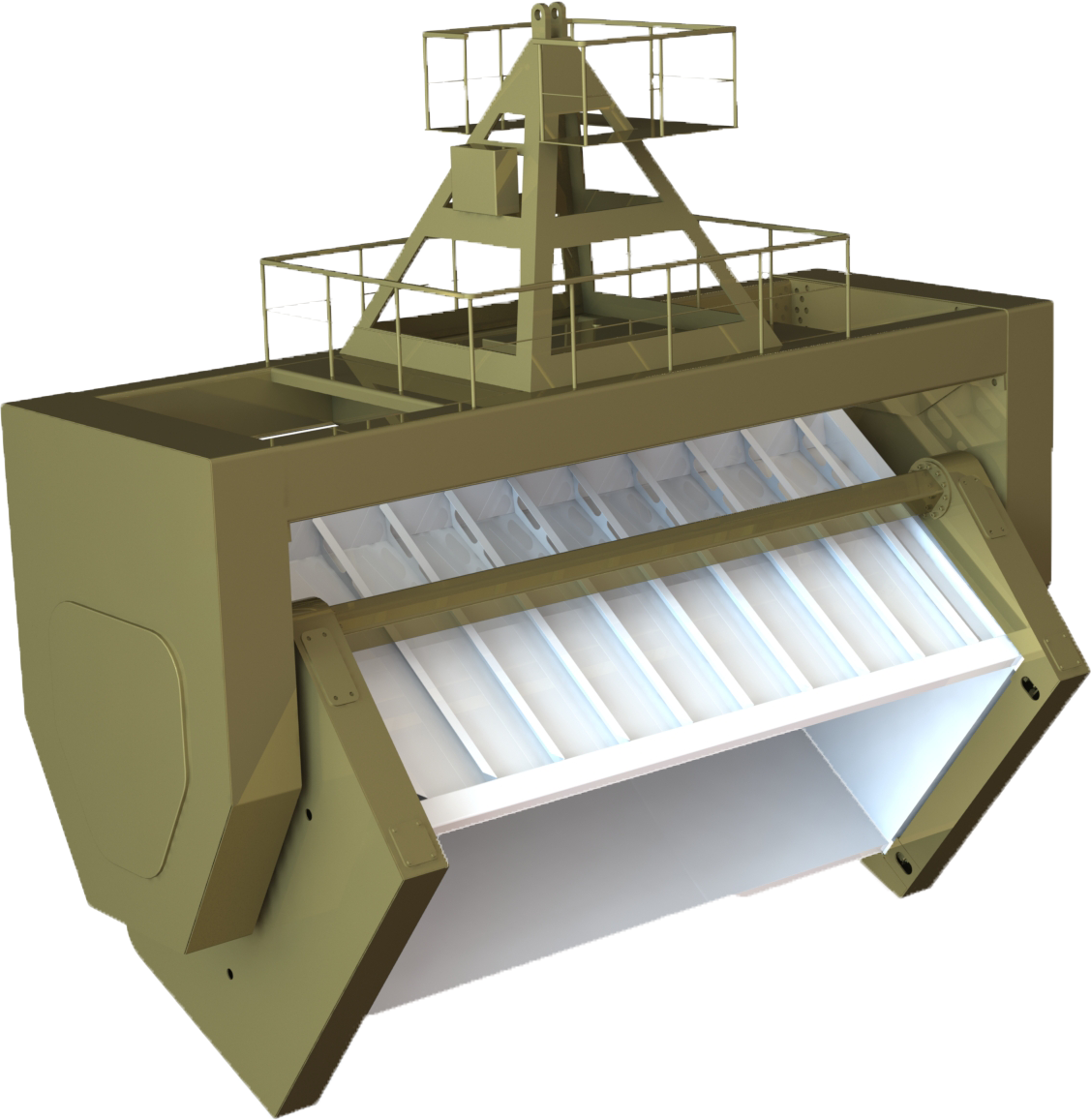

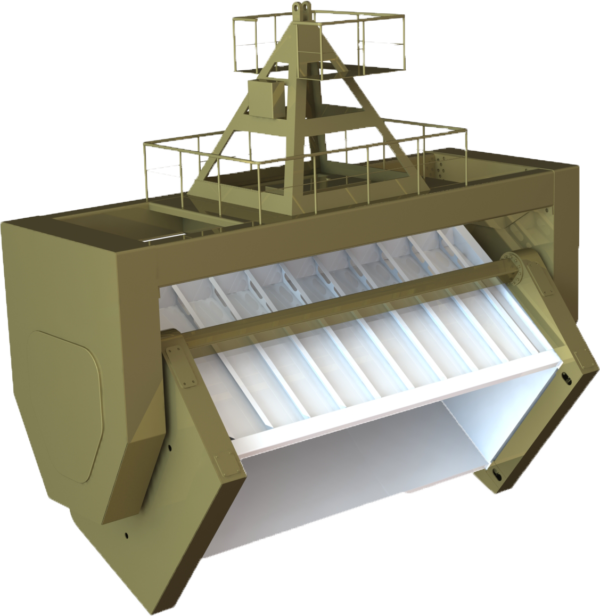

The TURNOVER Spreader is designed to handle bulk cargo, open-top containers loaded with

• Wood chips, bulk density 0.7t/m3
• Wood pellet, bulk density 0.8t/m3

Container size – 20ft

Lifting capacity – 38t

Tare weight – 14t

Operating speed:

• Twist-lock operation – 1.5sec
• Rotation 0-360 degrees – 25sec

Hydraulic characteristics:

• System running pressure – 165Bar
• Pump flow rate – 280L
• Electric – 22kW
• Voltage – 400WDC, 50 Hz

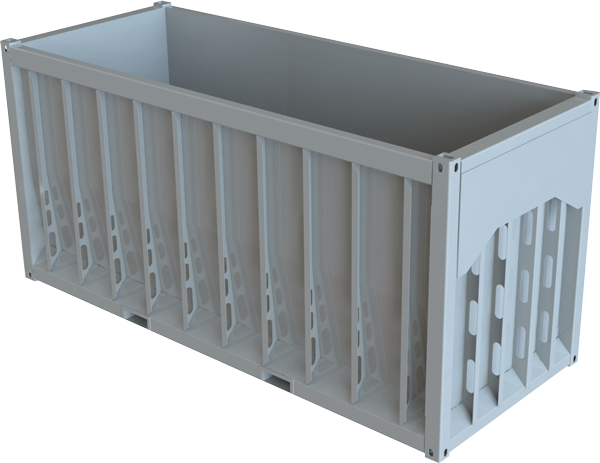

We manufacture Heavy-Duty Containers. The Container is designed to store and transport such bulk cargo as - ore, crushed stone, pellets, wood chips, coal, etc.

The Container is designed to work with the «TURNOVER» spreader.

As an option - it is possible to install a removable cover.
